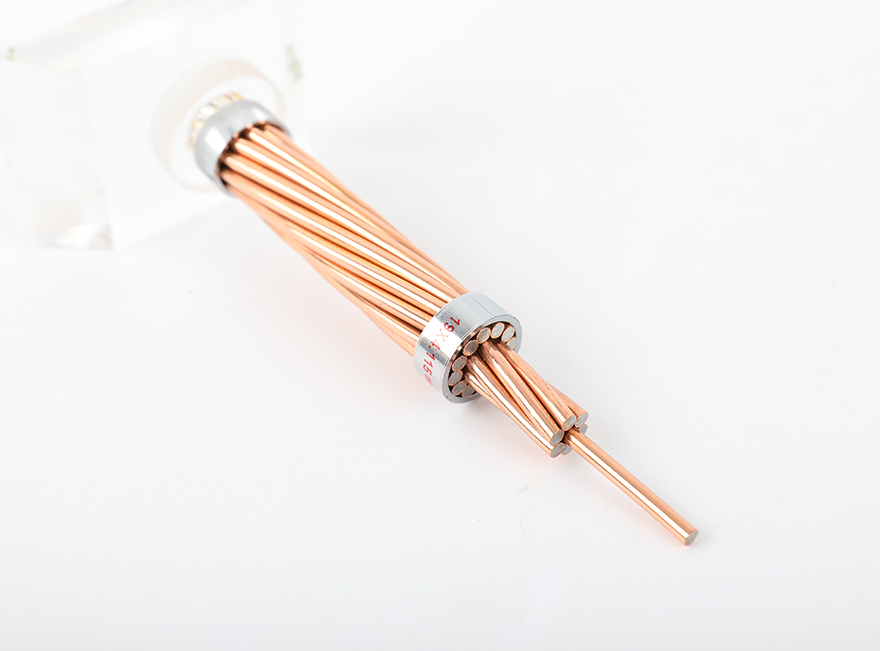

| 铜包钢绞线 | |||||
| 截面积 | 单丝直径 | 根数 | 外径 | 重量 | 单丝导电率 |
| 16 | 1.70 | 7 | 5.10 | 130 | 14-40 |
| 25 | 2.14 | 7 | 6.36 | 200 | |
| 35 | 2.52 | 7 | 7.50 | 280 | |
| 50 | 3.00 | 7 | 9.0 | 400 | |
| 1.80 | 19 | ||||
| 70 | 3.50 | 7 | 10.0 | 500 | |
| 2.14 | 19 | ||||
| 95 | 2.52 | 19 | 12.6 | 766 | |
| 120 | 2.84 | 19 | 14 | 980 | |
| 150 | 3.15 | 19 | 15.8 | 1230 | |
| 2.28 | 37 | ||||
| 185 | 3.52 | 19 | 17.5 | 1520 | |
| 2.52 | 37 | ||||
| 240 | 4.00 | 19 | 20.00 | 1970 | |
| 2.88 | 37 | ||||
| 300 | 3.20 | 37 | 22.4 | 2430 | |

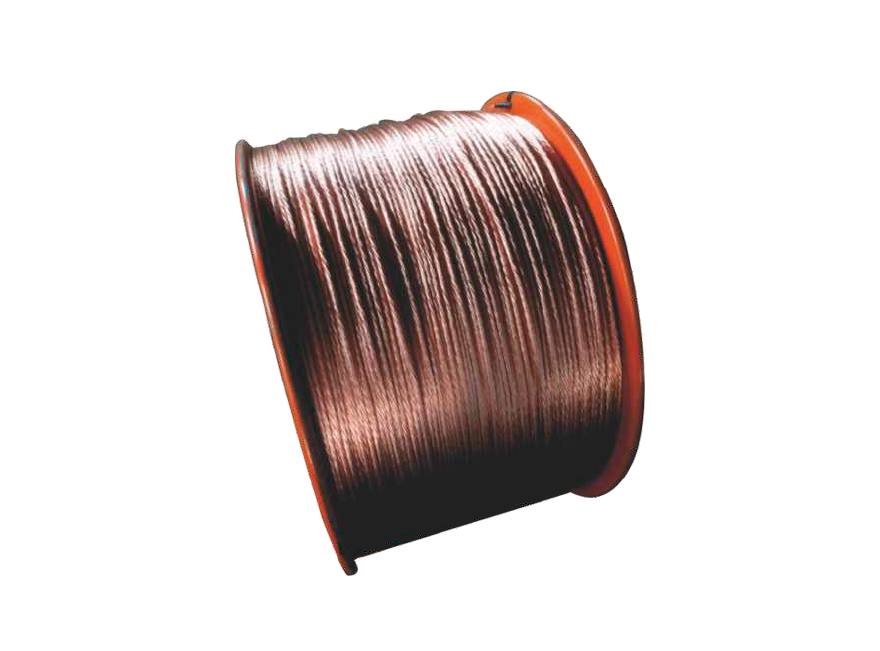

| 包装参数: | ||||
| DIN 130mm | DIN 185mm | DIN 250mm | DIN400mm | DIN800mm |
| A:130mm | A:185mm | A:250mm | A:400mm | A:800mm |
| B:65mm | B:130mm | B:160mm | B:160mm | B:370mm |
| C:100mm | C:160mm | C:160mm | C:260mm | C:490mm |
| D:120mm | D:180mm | D:200mm | D:290mm | D:520mm |
| E:21mm | E:31mm | E:31mm | E:56mm | E:126mm |
