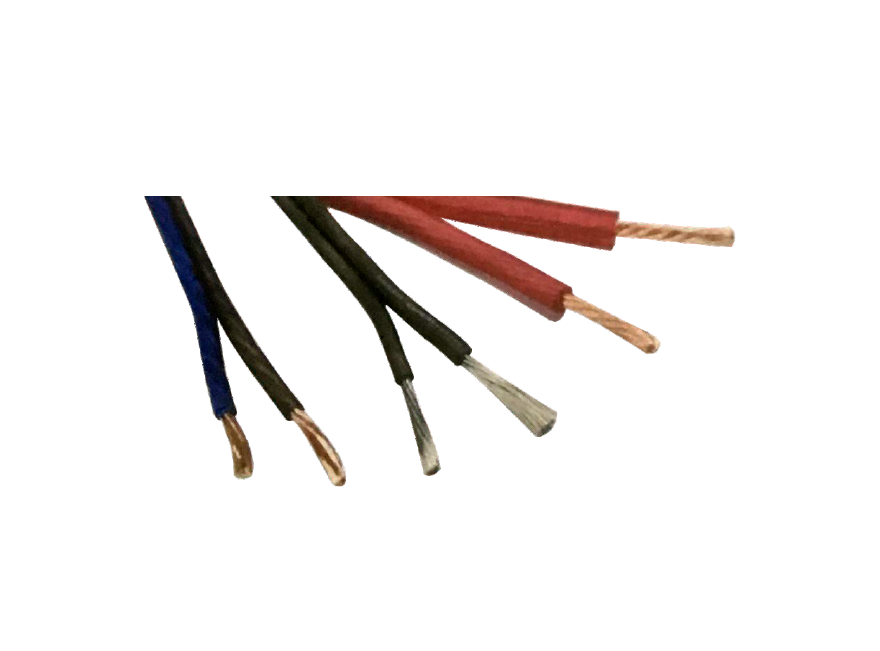

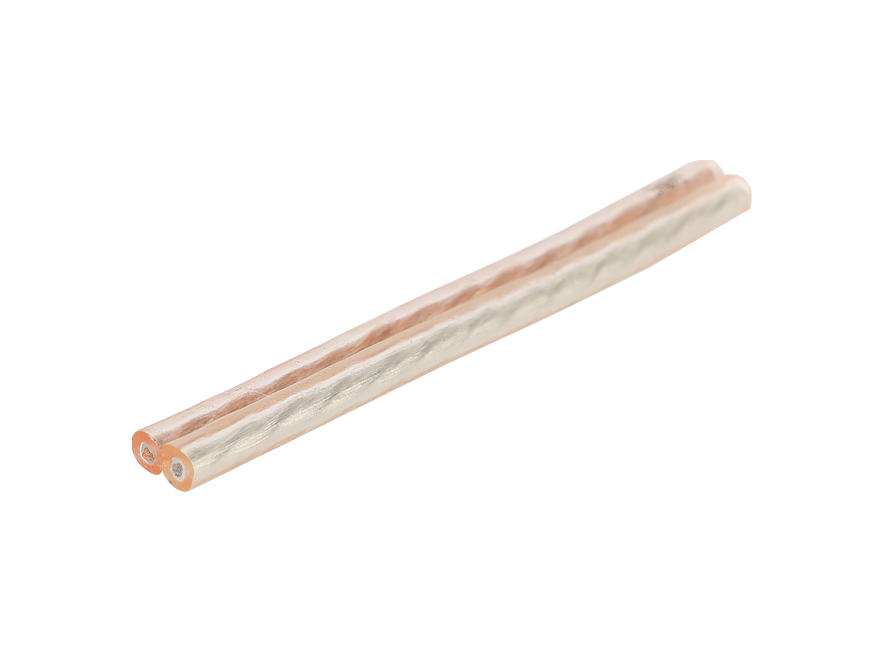

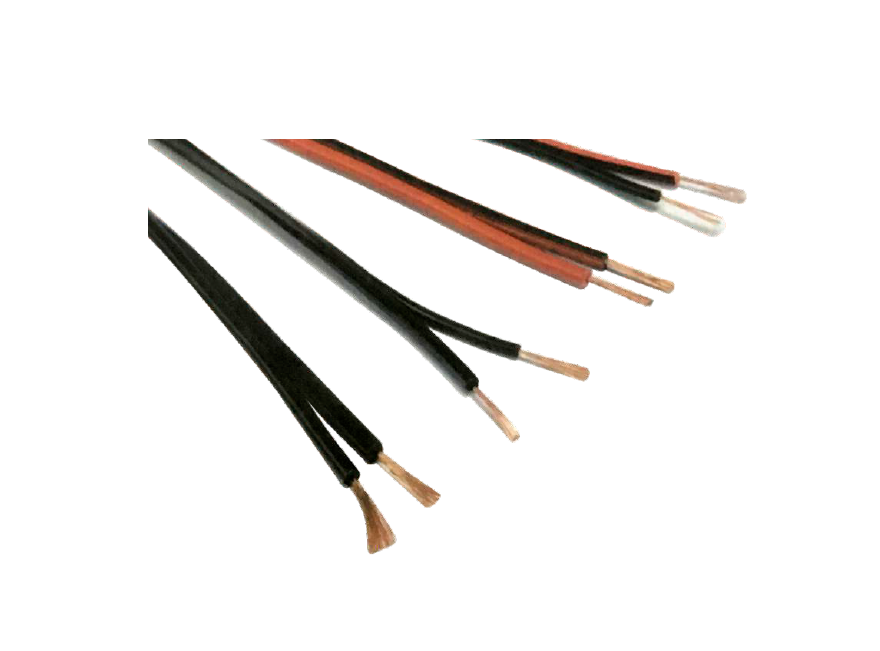

喇叭线

喇叭线

导体:
镀银无氧铜
无氧铜
铜包铝10A/H
铜包铝15A/H

PVC 绝缘:
实色
透明

0
Views: 1,021
邮箱 :Info@meitongtech.com

产品详情

型号 尺寸 导体材质 外直径
HB 101 2×0.2mm² CU/CCA 1.6×3.2mm
HB 102 2×0.25mm² CU/CCA 1.8×3.6mm
HB 103 2×0.35mm²/td> CU/CCA 2.0×4.0mm
HB 104 2×0.5mm² CU/CCA 2.2×4.4mm
HB 105 2×0.75mm² CU/CCA 2.5×5.0mm
HB 106 2×1.0mm² CU/CCA 3.0×6.0mm
HB 107 2×1.5mm² CU/CCA 3.5×7.0mm
HB 108 2×2.0mm² CU/CCA 3.8×7.5mm
HB 109 2×2.5mm² CU/CCA 4.0×8.0mm
HB 110 2×3.0mm² CU/CCA 4.5×7.0mm
HB 111 2×4.0mm² CU/CCA 5.0×10mm
HB 112 2×5.0mm² CU/CCA 5.5×11mm
HB 113 2×6.0mm² CU/CCA 6.0×12mm





Product No. Type Conductor ODmm
HB 201 26AWG CU/CCA/CCS 1.7×3.4mm
HB 202 24AWG CU/CCA/CCS 1.8×3.6mm
HB 202 22AWG CU/CCA/CCS 2.0×4.0mm
HB 204 20AWG CU/CCA/CCS 2.2×4.4mm
HB 205 18AWG CU/CCA/CCS 2.5×5.0mm
HB 206 16AWG CU/CCA/CCS 3.0×6.0mm
HB 207 14AWG CU/CCA/CCS 3.5×7.0mm
HB 208 12AWG CU/CCA/CCS 4.0×8.0mm
HB 209 10AWG CU/CCA/CCS 5.5×10.0mm
